(Docker) Compose Plugin For OMV8

Docker is a technology that enables the creation and use of Linux containers. A container is an isolated environment where one or more applications and their dependencies run using the same operating system kernel.

Docker allows applications to be installed, removed, modified, and updated without directly affecting the base system.

The openmediavault-compose plugin provides an interface in the OpenMediaVault GUI to create and manage containers using docker compose.

With this plugin:

• Containers are managed through compose files.
• Custom images can be created using Dockerfiles, and containers can then be created from those images.
• All generated files (compose files, Dockerfiles, environment files, etc.) are stored in a user-defined folder.
• The plugin only manages containers created through the OMV GUI. Containers created manually via the CLI will not be fully visible to the plugin, although some generic actions may still be available.

This document assumes that Docker and the required dependencies are already installed and properly configured.

The document Docker in OMV 8 describes the recommended method to install and configure Docker on OpenMediaVault.

It is strongly recommended to read and follow that document before installing or using the openmediavault-compose plugin.

Go to → Docker in OMV 8

• OMV-Extras must be pre-installed.

The installation and initial configuration of Docker and the openmediavault-compose plugin are covered in the document Docker in OMV 8 and will not be repeated here.

This tab contains the general configuration options of the openmediavault-compose plugin.

From here, you can define the folders used by the plugin, configure backup behavior, and manage Docker-related settings.

Go to → Services > Compose > Settings

Changes made in this tab are applied using the Save button.

Define the folder where the plugin will store container configuration files, including Docker Compose files (.yaml) and environment files (.env).

• Shared Folder
  • Select the shared folder where compose files will be stored.
  • Choose an existing folder or create a new one by pressing the “+” button.
  • This folder will serve as the root for all container subfolders.

• Owner of Directories and Files
  • Set the system user that will own all files and folders created by the plugin.
  • Default: root.
  • Keep root ownership unless specific user requirements exist.

• Group of Directories and Files
  • Set the system group that will own all files and folders created by the plugin.
  • Default: root.

• Permissions of Directories and Files
  • Define default permissions for all files and folders created by the plugin.
  • Default: read and write for the administrator (owner), no access for group and others.
  • These permissions do not affect subfolders corresponding to volumes with relative paths.

• Notes
  • The plugin creates a subfolder for each container inside the selected shared folder.
  • Compose files and environment files for each container are stored inside their respective subfolders.
  • Ensure that the selected shared folder has enough space for all container configurations and environment files.

Define a shared folder used as a global data path.

• Shared Folder
  • Select a shared folder to serve as the global data path.

• Notes
  • The value configured here is used when the special string CHANGE_TO_COMPOSE_DATA_PATH is referenced in any compose file.
  • This mechanism behaves like a global environment variable and allows compose files to reference a common data location without hardcoding paths.
  • The plugin's sample compose files use this variable, so configure this field if you want the sample files to work immediately.

Configure the plugin's schedulable backup system.

• Included by Default
  • All subfolders inside the Compose Files folder
  • Compose files (.yaml and .env)
  • Volumes defined using relative paths
  • Volumes not marked as read-only (:ro) in the compose files
  • Volumes larger than 1 GB are excluded by default

• Shared Folder
  • Set the destination folder for backups.

• Max Size
  • Define the maximum size of volumes to include in backups.
  • Default: 1 GB
  • Set to 0 for unlimited size

• Volume Customization
  • Add # BACKUP at the end of a volume line in a compose file to force inclusion in the backup.
  • Add # SKIP_BACKUP at the end of a volume line to exclude it from the backup.

Configure Docker-specific settings used by the plugin.

• Docker Storage
  • Define the absolute path used by Docker to store its internal data (images, containers, layers, etc.).
  • Default: `/var/lib/docker`
  • Changing this location allows storing Docker data outside the OMV system disk.
  • Avoid using symbolic links.

• Shared Folder
  • Selecting a shared folder here automatically populates the Docker Storage field with the corresponding absolute path.

• Log File Max Size
  • Define the maximum size of Docker container log files.
  • Default: 50 MB
  • Set to 0 for unlimited size
  • This setting affects Docker’s internal logs only; it does not control application-level logs inside containers.

• Live Restore
  • Enable or disable Docker’s live restore feature.
  • When enabled, containers continue running when the Docker daemon is restarted.
  • Disabling this restores Docker’s default behavior (containers stop and restart with the daemon).

Adjust plugin behavior for advanced use or debugging.

• URL Hostname
  • Override the hostname used when opening URLs for services, files, or containers in the OMV GUI.
  • Example: override `omv.local` with `my-server.dyndns.org`.
  • Does not change container or Docker configuration; only affects plugin-generated URLs.

• Show Commands (disabled by default)
  • Display the exact Docker command executed by the plugin for any action.
  • Useful for advanced users or debugging.

• Run Config (disabled by default)
  • Automatically check the syntax of Docker Compose files when saving.
  • Executes the standard `docker compose config` command internally.

• Notes
  • Both Show Commands and Run Config are optional and primarily for advanced users.
  • Leaving them disabled does not affect normal container creation or management.

Configure caching behavior of the plugin’s GUI to improve performance.

• Available Tabs
  • Files – caches file and folder information from containers
  • Services – caches status and configuration of running services
  • Stats – caches container resource usage (CPU, memory, network)
  • Images – caches Docker image information
  • Networks – caches Docker networks
  • Volumes – caches Docker volumes
  • Containers – caches container list and status

• Configuration
  • Enter cache duration in seconds for each tab.
  • Default: 60 seconds
  • Set to 0 to disable caching (always fetch fresh data)

• Notes
  • Increasing cache times improves GUI responsiveness on systems with many containers, images, or volumes.
  • Reducing cache times (or setting 0) ensures up-to-date information but may slow down the interface.

From left to right:

• Cancel
  • Discard changes and revert to previous configuration.

• Enable Docker Repo
  • Activate the Docker repository from this tab.
  • Useful to avoid navigating to the OMV-Extras tab.

• Reinstall Docker
  • Reinstall Docker to apply configuration changes or resolve issues.

• Restart Docker
  • Restart the Docker service without affecting the system or other OMV services.

• Save (green highlight when changes detected)
  • Save all modified parameters in the tab.
  • Must be pressed to apply changes.
  • Highlighted in green when unsaved changes exist.

The Files tab is the compose file management interface of the openmediavault-compose plugin.

From this tab you can create, edit, delete and manage Docker Compose configuration files (.yaml) and environment files (.env) used to deploy and control containers.

All files created or imported here are stored in subfolders inside the shared folder defined in Settings → Compose Files.

Actions performed in this tab apply to all containers defined in the selected compose file.

• The file list displays all existing compose configurations.
• Selecting a file enables the action buttons in the top toolbar.
• Each compose file represents one or more containers managed together as a single project.
• Actions such as Up, Down, Stop, Pull, etc. affect all containers defined in that file.

The + button groups all actions related to creating or importing compose files.

Creates a new Docker Compose file from scratch.

• Name
• Name used to identify the compose configuration.
• A subfolder with this name will be created automatically.
• Description
• Optional description to help identify the configuration.
• File
• Paste or write the Docker Compose YAML configuration.
• Environment
• Paste or write the environment variables file (.env).
• Save
• Creates the subfolder and stores the .yaml and .env files.
• The new entry appears in the file list.
• Cancel
• Exit without saving changes.

Create compose files from predefined examples included with the plugin.

• Example
  • Select a predefined compose template.
• Name
  • Name of the new compose configuration.
• Description
  • Optional description.
• Save
  • Copies the example files so they can be edited and adapted.
• Cancel
  • Exit without saving.

Create a compose configuration by downloading a file from a remote URL.

Only trusted sources should be used.

• URL
  • URL of the compose file to download.
• Name
  • Name of the new configuration.
• Description
  • Optional description.
• Save
  • Downloads and creates the compose configuration.
• Cancel
  • Exit without saving.

Generate compose files from existing containers that were created outside the plugin.

Use this feature only when necessary. The generated files are usually larger and less clean than manually written compose files.

Useful when the original compose configuration has been lost.

• Container
  • Select a running container to import.
• Name
  • Name of the new compose configuration.
• Description
  • Optional description.
• Version
  • Docker Compose file version to use.
• Create
  • Generates the .yaml and .env files.
• Cancel
  • Exit without saving.

Import existing compose configurations into the plugin.

• Enter the path to a folder containing compose subfolders.
• Each compose configuration must follow this structure:
  • compose_files
    • example1
      • example1.yml
      • example1.env
    • example2
      • example2.yml
      • example2.env
• Click Create to import.

Imports a single Docker Compose file. Useful when testing or migrating an individual compose file without importing a full directory.

Reloads the compose file from disk and synchronizes external changes with the plugin state. This is useful when the file has been modified outside the GUI (for example via CLI, git pull or an external editor).

Edit the .yaml and .env files of the selected configuration.

The editor window is identical to the Create dialog.

Delete the selected compose configuration.

• Removes the configuration entry.
• Deletes the corresponding subfolder and its files.

Validate the syntax of the selected compose file.

• Reports configuration errors if detected.
• Errors shown in red can be copied from the OMV notifications panel.

Recommended before starting containers.

Displays the current status of containers associated with the selected compose file.

Start all containers defined in the selected compose file.

• Downloads required images if they are not present.
• Creates and starts the containers.

Stop all containers defined in the selected compose file.

Useful for troubleshooting or inspecting container output.

Stop and remove all containers defined in the selected compose file.

Download the latest available images for the selected compose file.

• Existing images are not removed automatically.
• Old images can be removed using Prune.

Define global environment variables available to all compose files.

Example variable definition:

MYPUID=1000

Usage inside a compose file:

- PUID=${MYPUID}

Docker will substitute the value when the container starts:

- PUID=1000

These variables are available to all compose files managed by the plugin.

The Prune button groups several cleanup actions into a submenu.

Performs all prune actions at once.

Removes stopped containers.

Removes unused container images.

Removes unused Docker networks.

Removes unused Docker volumes.

The Tools menu provides advanced utilities for logs, deployment and configuration management.

Displays container logs.

Shows container logs in real time.

Downloads container logs to a file.

Builds images defined in the compose file.

Pulls images and then builds them.

Starts containers and removes orphan containers not defined in the compose file.

Stops containers and removes orphan containers.

Stops and removes all containers managed by the plugin, regardless of compose file. This is an advanced operation and should be used with caution.

Initializes a git repository in the compose files directory.

Shows changes made to compose files compared to the git repository state.

Shows changes made to the global environment file.

The Docs menu provides quick access to documentation.

Opens this documentation.

Open the Docker in OMV document on this wiki.

The Configs tab allows you to manage Docker configs used by compose files.

Docker configs are external configuration files managed by Docker and mounted into containers at runtime. They are typically used to provide application configuration files (for example: nginx.conf, app.conf, config.json) without embedding them directly inside the compose file.

This tab is intended for advanced users and is optional for most container deployments.

• Configs are not Docker Compose files.
• They do not define or start containers by themselves.
• A config is always associated with a specific compose file.
• Configs can be referenced inside compose files using the standard Docker Compose configs: directive.
• This feature is similar to Docker secrets, but configs are not encrypted.

The “+” button groups all actions related to creating or importing Docker configs.

Creates a new Docker config file.

The dialog contains the following fields:

• Filename
  • Name of the configuration file.
  • This must be a filename only, not a path.
  • Example: nginx.conf
• Description
  • Optional description to help identify the config.
• Compose File
  • Select the compose file this config belongs to.
  • The config file will be created inside the directory of the selected compose file.
• Body
  • Contents of the configuration file.
  • Plain text editor where the configuration data is entered.
• Save
  • Creates the config file and associates it with the selected compose file.
• Cancel
  • Exit without saving changes.

Imports an existing configuration file as a Docker config.

Useful when migrating from an existing setup or when the configuration file already exists on disk.

Edit the contents of the selected config file.

Delete the selected config file.

• The config will no longer be available to the associated compose file.

Displays changes made to config files.

This is particularly useful when working with git integration or when tracking manual edits to configuration files.

Docker configs managed in this tab can be referenced inside compose files using the standard Docker Compose syntax.

This allows configuration files to be mounted into containers at runtime without hardcoding their contents directly in the compose file.

This functionality is recommended only for users familiar with Docker Compose and container configuration management.

The Services tab displays services generated by Docker containers managed by the openmediavault-compose plugin.

Each entry represents a service exposed by a container, typically corresponding to an application or web interface.

The Ports column shows clickable links that allow direct access to the web interface provided by each service.

Selecting a service enables the action buttons in the top toolbar.

• Each row represents a service exposed by a container.
• Services are derived from running containers.
• Actions performed here affect the container providing the selected service.
• This tab focuses on service-level management rather than compose file management.

Downloads the latest available image for the container associated with the selected service.

This does not restart or recreate the container automatically.

Recreates and starts the service using the currently available image.

Typically used after pulling a newer image.

Stops the container providing the selected service.

Stops and removes the container providing the selected service.

The container can later be recreated using the Up action.

Restarts the container providing the selected service without removing it.

Useful for applying configuration changes that do not require container recreation.

Displays detailed Docker inspection information for the container providing the selected service.

Includes configuration, mounts, network settings and runtime status.

Displays the log output of the selected service up to the moment the action is executed.

Displays the log output of the selected service in real time.

New log entries will continue to appear as they are generated.

Downloads the log output of the selected service to a file.

Useful for offline analysis or for sharing logs when requesting support.

• Actions in this tab operate on individual services, not on entire compose files.
• For bulk container management or stack-level operations, use the Files tab.
• Service actions here map directly to Docker container operations.

The Stats tab displays a list of running containers along with real-time information about resource usage.

This includes CPU, memory, network and disk I/O statistics provided by Docker.

Selecting a container enables the action buttons in the top toolbar.

• Each row represents a running container.
• Resource usage data is refreshed periodically.
• This tab is intended for monitoring and quick troubleshooting.
• Actions performed here apply to the selected container only.

Displays detailed information about the selected container using Docker inspect.

Includes configuration, mounts, network settings, environment variables and runtime state.

Activated when selecting a container.

Displays the log output of the selected container up to the moment the action is executed.

Activated when selecting a container.

Displays the log output of the selected container in real time.

New log entries will continue to appear as they are generated.

Activated when selecting a container.

Restarts the selected container.

Useful to quickly apply changes or recover from temporary issues without recreating the container.

Activated when selecting a container.

Downloads the log output of the selected container to a file.

Useful for offline analysis or when attaching logs to a support request.

Activated when selecting a container.

• The Stats tab focuses on monitoring and container-level actions.
• For service-oriented actions, use the Services tab.
• For stack or compose-file-level operations, use the Files tab.

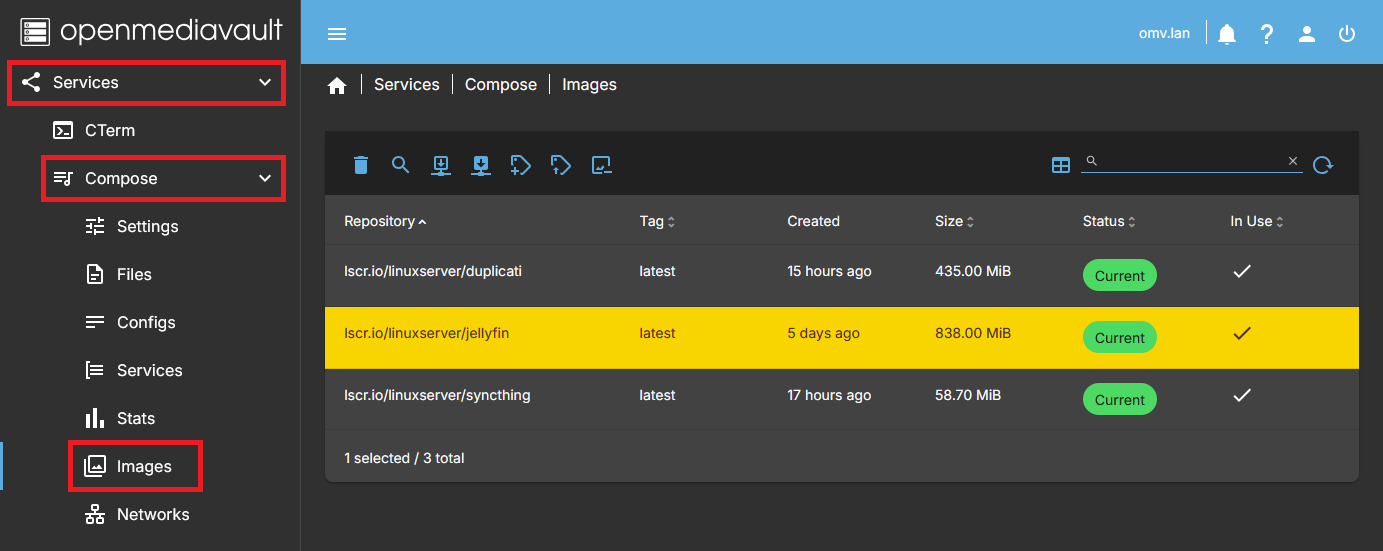

Shows existing images on the system and allows you to manage them.

Selecting an image activates the action buttons on the top bar.

Deletes the selected image if it is not currently in use. If the image is in use, an error is returned and the image is not removed.

Displays detailed information about the selected image.

Downloads the latest version of the selected image from the configured repository.

Downloads a specific tagged version of the selected image from the repository.

Assigns a new tag to the selected image. Useful for versioning or preparing to push the image to a repository.

Uploads the selected image to a remote Docker repository using its assigned tag.

Cleans up unused images from the system. Removes images that are not currently used by any container to free disk space.

Shows existing networks on the system and allows you to manage them.

Selecting a network activates the action buttons on the top bar.

Opens a dialog to create a custom network interface.

• Name
  • Type the name of the network interface.
• Driver
  • Choose the network driver type (bridge, overlay, macvlan, etc.).
• Subnet
  • Define the subnet in CIDR notation (e.g., 172.20.0.0/16).
• Gateway
  • Specify the gateway IP address (e.g., 172.20.0.1).
• IP Range
  • Optional range for container IP allocation (e.g., 172.20.10.128/25).
• Aux Address
  • Optional static IP assignments in the format `name=ip`.

Comma separate multiple entries (e.g., `my-router=192.168.10.5,my-nas=192.168.20.6`).

• Save
  • Creates the network with the defined parameters.
• Cancel
  • Exit without creating a network.

Deletes the selected network interface.

Displays detailed information about the selected network interface.

Shows existing volumes on the system and allows you to manage them.

Selecting a volume activates the action buttons on the top bar.

Deletes the selected volume.

Displays detailed information about the selected volume.

Shows a list of running containers displaying basic execution data.

Selecting a container activates the action buttons on the top bar.

Actions in this tab apply only to the selected container, even if the yaml file defines multiple containers.

The Ports column provides links to access the GUI of each container via its port and the server’s domain. Ensure your router/DNS system allows proper resolution of these domain names.

Restarts the selected container.

Activated when selecting a container.

Displays detailed information about the selected container.

Activated when selecting a container.

Displays the logs of the selected container up to this point.

Activated when selecting a container.

Shows continuous logs of the selected container in real time.

Activated when selecting a container.

Downloads the log file of the selected container to the local system.

Activated when selecting a container.

This is the Dockerfiles management tab for creating container images.

From this tab you can create, edit, delete, build, and manage Dockerfiles.

All files generated here are stored in subfolders inside the shared folder defined in Settings → Compose Files.

Selecting a Dockerfile activates the action buttons on the top bar.

Creates a new Dockerfile to generate a container image.

• Name
  • Name to identify the Dockerfile.
• Description
  • Optional description to help identify the Dockerfile.
• Dockerfile
  • Paste or write the Dockerfile content.
• Script filename
  • Name of an optional script to call the Dockerfile.
• Script
  • Paste or write a script to run the Dockerfile if required.
• Conf filename
  • Name of an optional configuration file.
• Conf file
  • Paste or write environment parameters to include in the image.
• Save
  • Creates the subfolder and stores the files.
• Cancel
  • Exit without saving.

Allows editing the selected Dockerfile, script, and conf files.

Activated when selecting a Dockerfile.

Deletes the selected Dockerfile.

Also removes the corresponding subfolder and all related files.

Activated when selecting a Dockerfile.

Builds the image using the selected Dockerfile.

• If the base image is not present, it will be pulled from the internet.
• Modified images will be created according to the Dockerfile instructions.

Activated when selecting a Dockerfile.

Builds the image like Build, but always pulls the base image from the internet even if it exists locally.

Activated when selecting a Dockerfile.

Allows tagging the selected image with a custom name.

Activated when selecting a Dockerfile.

This tab manages the utility that allows you to perform plugin backups and/or container image updates. It displays a list of scheduled jobs.

By default, backups include all subfolders containing generated compose files. These subfolders are created automatically every time a compose file is generated via the GUI.

Additionally, volumes defined in each container that are smaller than 1GB will be included in the backup. This threshold can be customized in the Settings Tab.

You can manually include or exclude volumes:

• To force a volume to be included in the backup, append # BACKUP at the end of the volume definition. Volumes under 1GB (or the custom threshold) are included automatically.
  • Volumes with :ro will never be included.
• To force a volume to be excluded, append # SKIP_BACKUP at the end of the volume definition. Volumes above the threshold are excluded automatically if not marked.

Backup process:

• Stops running containers.
• Copies files via rsync to the backup folder defined in Settings.
  • Existing backup is overwritten.
  • For versioned backups, use an external backup application after this copy.
• Restarts containers that were running before the backup; stopped containers remain stopped.
• Copies the global environment variables file ('global.env') to the backup folder.

Update process:

• Downloads container images included in the compose file.
• Recreates containers with the updated images if they were running.

Opens a dialog to schedule container backup and/or update jobs.

• Enabled
  • Enables or disables the scheduled job.
  • If disabled, the job will not run automatically but can still be executed manually.

• Filter
  • Choose which compose files are affected by this job by filtering their names.
  • Supports partial matches and wildcards (*).
    • Examples: asd*, *asd*, *asd
  • Leave blank or use * to include all compose files.
  • Multiple filters can be specified, separated by commas.

• File excludes
  • Defines files or paths to exclude from the scheduled action.
  • Multiple exclusions must be comma separated.

Defines the type of action performed by the scheduled job.

• Maintenance (enabled by default)
  • Enables maintenance-related tasks such as backup, update, and prune.

• Container state (disabled by default)
  • Enables scheduled start or stop operations for containers (described in a separate section below).

(Available when Maintenance is selected)

• Backup (enabled by default)
  • Performs a backup of container data as described in this tab.
  • Stops running containers before backup and restarts them afterward.

• Update
  • Updates all images defined in the selected compose files.
  • Containers will be recreated after the update if they were running.
  • If Backup is also enabled, backup will always run first.

• Prune
  • Removes all dangling Docker images.
  • Does not use filters.
  • Executes the command: docker image prune -f

Allows execution of custom scripts before and/or after the maintenance task.

• Pre-backup script
  • Path to a script executed before the scheduled task starts.

• Post-backup script
  • Path to a script executed after the scheduled task finishes.

Defines when and how the task is executed.

• Configure date and time using the standard OMV scheduling options.
  • For example, the attached screenshot will backup all containers on Sundays at 8:36 AM. and will send an email with the result of the backup.
• Jobs can be scheduled to run periodically (daily, weekly, monthly, etc.).

• Send command output via email
  • Sends an email containing the command output (if any) to the user who created the job.

• Verbose
  • Enables verbose output for the backup rsync command.
  • Useful for detailed logging and troubleshooting.

• Comment
  • Optional descriptive note.
  • Displayed in the GUI to help identify the scheduled job.

At the bottom of the dialog:

• Save
  • Stores the scheduled job with the defined configuration.

• Cancel
  • Exits the dialog without saving changes.

(Available when Container state is selected as the Action Type)

This mode allows you to schedule automatic start or stop actions for containers defined in compose files.

Unlike maintenance tasks, this mode does not perform backups, updates, or image operations. It only controls the execution state of containers.

• Start
  • Starts all containers defined in the compose files selected by the filter.
  • Containers that are already running will be ignored.

• Stop
  • Stops all containers defined in the compose files selected by the filter.
  • Containers that are already stopped will be ignored.

The Filter field in the Settings section applies exactly the same way as in maintenance mode.

• Filters select which compose files are affected.
• All containers defined in those compose files will be started or stopped.
• Wildcards (*) and multiple comma-separated filters are supported.

• Automatically stop containers at night to save power.
• Start containers before business hours.
• Coordinate container execution with external systems or scheduled maintenance.
• Temporarily stop heavy workloads during backup windows.

• No backup or update tasks are executed in this mode.
• Script execution fields are not used.
• This action only affects container runtime state.
• The job can still be executed manually using the Run button.

Opens the edit dialog for the selected scheduled task.

Deletes the selected scheduled task.

Executes the selected task immediately. Email notifications are not sent in this mode.

This tab allows you to restore backups previously created by the plugin backup utility.

Backups listed here are those generated from the Schedule tab and stored in the configured backup folder.

Selecting a backup activates the action buttons.

Restores the selected backup.

The restore process performs the following actions:

• Stops the containers affected by the restore.
• Restores compose files and container data from the selected backup.
• Restores the global.env file if it exists in the backup.
• Containers that were running before the restore will be started again.

Restores only the global environment variables file (global.env) from the selected backup.

This option is useful when:

• You want to recover global environment variables without restoring compose files.
• Compose configurations are already correct and only environment values were lost or modified.

No containers are stopped or restarted when using this option.

Deletes the selected backup from disk.

This action is permanent and cannot be undone.

This tab allows you to manage access to container image repositories.

The buttons available are:

• Login – Opens a dialog to authenticate with a container image repository.
• Logout – Logs out from the currently authenticated repository.

The dashboard provides several widgets that display the current status of Docker and running containers.

These widgets are informational only and do not allow direct interaction.

Shows the global Docker service status.

• A green indicator means Docker is enabled and running.
• If Docker is stopped or disabled, the indicator will reflect that state accordingly.

This widget provides a quick visual confirmation of Docker availability.

Displays Docker service status in table format.

• Shows whether Docker is enabled.
• Shows whether the Docker service is currently running.

This widget offers the same information as the grid view but in a more compact, list-based format.

Shows a list of currently running containers.

For each running container, the following information is displayed:

• Container name
• Image used by the container
• Uptime (how long the container has been running)

Stopped containers are not displayed in this table.

This widget allows quick monitoring of active containers without entering the Compose interface.

• If you have not already done so, define the folder where to store the configuration files. Go to Services > Compose > Settings In the dropdown choose a shared folder and click Save.
• Go to Services > Compose > Files Click on Create.
• Copy and paste your configuration yaml file into the File window.
• Fill in the Name field with a name for the file.
• Optionally type a description of the file in the Description field.
• Optionally copy and paste your environment parameter file into the Environment window.
• Press Save.
• Press the Up button. The image(s) of the container(s) defined in the yaml file will be downloaded and those containers will be put into operation.

• Go to Services > Compose > Services and select the container you want to update.
• Press the Pull button. This will download the latest available image from that container.
• Now go to Services > Compose > Files and select the file where that container is defined.
• Click Up. The containers defined in the yaml file will start with the latest available image downloaded. Your container is already updated.
• Press Prune and then press Image. Old images will be deleted.

• Go to Services > Compose > Files and select the yaml file that defines the containers you want to update.
• Press the Pull button. This will download the latest images available from all containers defined in the yaml file.
• Click Up. The containers defined in the yaml file will be started with the latest available image downloaded from each container. Your containers are already up to date.
• Press Prune and then press Image. Old images will be deleted.

• Go to Services > Compose > Files and select the yaml file that defines the containers you want to remove.
• Click Down to stop the containers defined in that yaml file.
• Press Prune and then press System. All data generated by those containers will be removed from the system.
• If you want to delete the yaml file, click Delete. This will remove the yaml file.

• If you have not already done so, define the folder where to store the configuration files. Go to Services > Compose > Settings In the dropdown choose a shared folder and click Save.
• Create the dockerfile composition file: Go to Services > Compose > Dockerfiles Click on Create.
  • Copy and paste your configuration dockerfile into the dockerfile window.
  • Fill in the Name field with a name for the dockerfile.
  • Optionally type a description of the dockerfile in the Description field.
  • Optionally copy and paste your script file into the Script window so that the dockerfile can execute it. Write the name of this file in the Script filename field.
  • Optionally copy and paste your environment parameter file into the Conf file window so that it is included in the generated image. Write the name of this file in the Conf filename field.
  • Press Save.
• Create the container and run it:
  • Select the dockerfile and press the Up button. The container will be created with the dockerfile commands and that container will be put into operation.

• Go to Services > Compose > Files and press the + and then the Autocompose button
• Expand the Container field. A list of all running containers will appear, select the container you want to generate a yaml file for.
  • In the Name field, type the name you want to use for the generated file.
  • In the Description field you can write a reminder summary of the file content.
  • In the Version field, select the version of docker-compose that will be used to generate the yaml file.
  • Press the Create button. The generated file will appear on a line in the Files tab list.
• Select this file and press the Edit button to view the content of the generated file.
  • There will probably be more information than necessary to define the container, it would be advisable to clean up all the unnecessary lines.
    • If you remember roughly what the original yaml file looked like, you can clean up the extra information.
    • You can search the internet for existing information about this container. If there is an example yaml file you can try to adapt yours to be as similar as possible.
    • Press the Save button.
  • Select the file again and press the check button.
    • The output can show you possible errors. If you detect any, go back to the previous step.
  • Select the file and press the Up button.
    • If the container is deployed without any problems the generated yaml file works. Otherwise you should keep checking for errors until it works.

This is useful if you need a container to have an IP within your LAN that is different from your server's.

The most common use case for this procedure is installing pi-hole in docker on an OMV server. The reason in this case is that both pi-hole and OMV need the same port to function correctly, port 53. Therefore we need pi-hole to use a different IP on our network to be able to use that port without affecting OMV. There may be other use cases besides pi-hole, depending on the needs of the container you're setting up.

Note that containers using this network will expose all their ports on the LAN, just like any other IP, eg OMV. Docker provides an additional layer of security through port mapping (similar to a firewall). Through this procedure we lose that additional security layer. This does not have to be a problem, it is normal operation in any network, but it is convenient to be aware of this circumstance. Logically it will be useless to map ports in those containers, so you can save that part.

We must create the network previously to be able to define the parameters we need and use it later in the containers. We will call it mynet and we will create it as follows:

• In the OMV GUI go to Services > Compose > Networks Press the Add button.
  • Choose the name for your network and write it in the Name field. For example mynet.
  • In the Driver field, drop down the menu and choose macvlan.
  • In the Parent Network field, drop down the menu and choose your OMV network interface. You can check it in the GUI under Network > Interfaces.
  • In the Subnet field write the IP range of your local network. Usually it can be 192.168.1.0/24 Adapt it to your network.
  • In the Gateway field write the gateway of your network, normally your router, something like this 192.168.1.1 Adapt it to your network.
  • In the IP range field write 192.168.1.240/29 Adapt it to your network.
    • This network range is equivalent to the IP addresses between 192.168.1.241 to 192.168.1.246 This will allow us to assign IP addresses up to 6 containers, you can expand it if you need more. Any such website can help with this: IP calculator
    • So that this is not a problem with the IP assignment of your DHCP server (your router in general) you can reduce the assignment range, instead of letting it assign from 1 to 254, we can reduce it from 1 to 235 for example. This is how we make sure we have those free IPs for docker.
  • In the Aux address field you can optionally define an IP address to reserve for the host. In this case it would be host=192.168.1.247
    • This will be useful only if you need the host and the container to communicate with each other.
  • Press the Save button. At this moment the network is already created and you can use it in the configuration of any container.
    • You can inspect the network by selecting it and clicking the Inspect button to view its current values. When some container is using it, it should appear in this configuration.

In order for a container to use the created network interface you need to add the following lines to the end of your compose file, assuming docker-compose is version 3 or higher. See the documentation for older versions of docker-compose.

services:
  pi-hole:
    container_name: "pi-hole"
    .
    .
    networks:
      mynet:
        ipv4_address: 192.168.1.241
networks:
  mynet:
    external: true

This sets up the mynet interface for that container and assigns it the IP value 192.168.1.241 within our network, which was the first available. We will still be able to use up to 246 in other containers.

When we start the container we will be able to access its interface from the assigned IP and the usual port.

Once the above is done, in order to avoid overlapping assignable IP ranges, it would be advisable to reduce the IP range of the network's DHCP server. In the case of the previous configuration it could be set to:

• From 192.168.1.2
• Up to 192.168.1.239

This way addresses from 192.168.1.240 onwards will always be available, since the router will not assign any of these IPs if a device requests an IP assignment.

If you use the container itself as a DHCP server, for example with pi-hole, you must disable the DHCP server on your router and adapt the DHCP range in pi-hole accordingly.

What has been applied so far is enough to use pihole, but in the case of other different containers it may be necessary for the container and the host to communicate with each other. Vlans have a limitation, by design they cannot communicate with the host. To overcome this setback and allow communication between the containers and the host, if necessary, we can create a network interface that will act as a bridge between the two.

Running the following commands would create this interface, but this configuration would not be persistent in OMV. On the first server restart it would disappear:

ip link add mynet-host link eno1 type macvlan mode bridge
ip addr add 192.168.1.239/32 dev mynet-host
ip link set mynet-host up
ip route add 192.168.1.224/28 dev mynet-host

This would create a macvlan network interface called mynet-host in bridge mode that would use the IP 192.168.1.239. The host would use this network interface thanks to the static route set in the 192.168.1.224/28 network range to communicate with the containers.

To make this configuration persistent in OMV we must do it as follows:

• Create a network interface configuration file:

nano /etc/network/interfaces.d/99-mynet-host

• Copy into that file the following content:

auto mynet-host
iface mynet-host inet static
    pre-up ip link add mynet-host link eno1 type macvlan mode bridge
    address 192.168.1.239/32
    up ip link set mynet-host up
    up ip route add 192.168.1.224/28 dev mynet-host

• Replace eno1 with your network interface. You can see it in the GUI under Network > Interfaces.
• Save changes and exit the editor. Ctrl+X and Yes
• Restart the service or the server.

From now on those settings will be set every time the server is started.

→ openmediavault-compose

We, who support the openmediavault project, hope you’ve found this guide to be useful and that you’ll find your openmediavault server to be efficient, easy to use, and enjoyable.

If you found this plugin guide to be helpful, please consider a modest donation to support the hosting costs of this server.

OMV-Extras.org
